| Geometry Parameters | Selection Technical Parameters – Per metre | |||||
|---|---|---|---|---|---|---|
| Cutting Length [in mm] | LEDs | Wattage [W] | Lumens [lm] | Efficiency [lm/W] | PCB Width [in mm] | |
| 25 | 320 | 5 | 550 | 110 | 3 | Download |
| 25 | 320 | 7 | 840 | 120 | 5 | Download |
| 25 | 256 | 10 | 1200 | 120 | 8 | Download |
| 25 | 320 | 10 | 1350 | 135 | 8 | Download |
| 25 | 320 | 15 | 2000 | 134 | 10 | Download |
| Free Cutting | 300 | 5 | 400 | 80 | 3 | Download |
| Free Cutting | 300 | 7 | 630 | 90 | 5 | Download |
| Free Cutting | 280 | 10 | 1080 | 108 | 8 | Download |
| Free Cutting | 300 | 10 | 1100 | 110 | 8 | Download |
| Free Cutting | 300 | 15 | 1650 | 110 | 10 | Download |

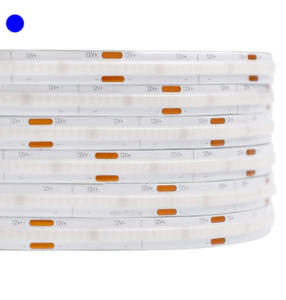

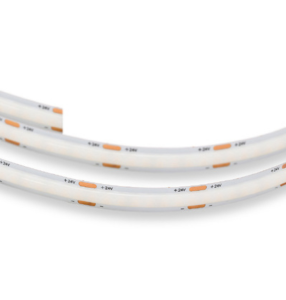

SCOB Series
The SCOB series blends advanced chip-on-board technology with a slim, flexible design to deliver seamless, dot-free illumination for high-end lighting applications. SCOB (Surface-mounted Chip On Board) LED strips use ultra-dense surface-mounted LEDs to achieve smooth, consistent light output without visible dots. With up to 336 LEDs per meter and high CRI performance, SCOB strips are perfect for modern architectural, commercial, and residential lighting.
Key Features:
• Dot-Free Illumination: High LED density for continuous, even lighting
• High Color Accuracy: CRI Ra>90 for vivid, true-to-life colors
• Compact & Flexible: Ultra-slim profiles for tight or visible installs
• Voltage Options: Available in 12V and 24V configurations
• Power & Brightness: 6W–15W/m with luminous output up to 1600 lm/m
• Dimmable: Compatible with PWM and 0–10V dimming systems
• Customizable Lengths: Cuttable at short intervals (model-dependent)
Applications:
• Cove and recessed lighting
• Under-cabinet and shelf lighting
• Retail and display showcases
• Accent and ambient lighting
• High-end interior designs
• Linear profiles and architectural fittings
Certifications & Reliability:
• CE, RoHS (UL model-dependent)
• Lifespan: 50,000+ hours
• General Warranty: 3–5 years
The SCOB series blends advanced chip-on-board technology with a slim, flexible design to deliver seamless, dot-free illumination for high-end lighting applications. SCOB (Surface-mounted Chip On Board) LED strips use ultra-dense surface-mounted LEDs to achieve smooth, consistent light output without visible dots. With up to 336 LEDs per meter and high CRI performance, SCOB strips are perfect for modern architectural, commercial, and residential lighting.
Key Features:
• Dot-Free Illumination: High LED density for continuous, even lighting
• High Color Accuracy: CRI Ra>90 for vivid, true-to-life colors
• Compact & Flexible: Ultra-slim profiles for tight or visible installs
• Voltage Options: Available in 12V and 24V configurations
• Power & Brightness: 6W–15W/m with luminous output up to 1600 lm/m
• Dimmable: Compatible with PWM and 0–10V dimming systems
• Customizable Lengths: Cuttable at short intervals (model-dependent)
Applications:
• Cove and recessed lighting
• Under-cabinet and shelf lighting
• Retail and display showcases
• Accent and ambient lighting
• High-end interior designs
• Linear profiles and architectural fittings
Certifications & Reliability:
• CE, RoHS (UL model-dependent)
• Lifespan: 50,000+ hours
• General Warranty: 3–5 years
