The COB series delivers ultra-smooth, dot-free lighting using chip-on-board LED
technology — ideal for sleek, modern installations where light quality and uniformity
are key.

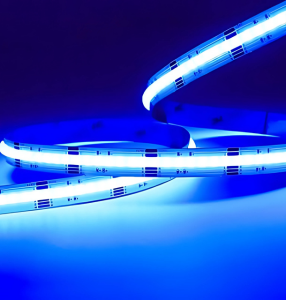

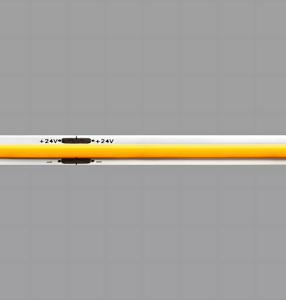

COB (Chip-on-Board) LED strips feature densely packed LED chips bonded directly to
the PCB, creating a continuous line of light with no visible dots. With high CRI,
excellent color consistency, and flexible design, COB strips are perfect for both
functional and decorative applications.
Key Features:
•Dot-Free Light Output: Continuous, seamless glow with no LED hotspots
•High CRI: Ra>90 / Ra>95 for excellent color rendering
•Wide CCT Range: Available from 2700K to 6500K, including tunable white options
•Slim & Flexible Design: Fits tight spaces and curves easily
•Power & Brightness: 8W–20W/m with output up to 2000 lm/m
•Dimmable: Supports PWM and 0–10V dimming systems
•Customizable: Cuttable at regular intervals for easy integration
Applications:

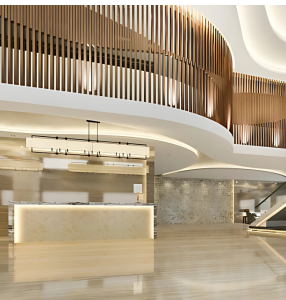

•Architectural and cove lighting
•Under-cabinet and shelf illumination
•Backlighting for mirrors, signage, and displays
•Accent and ambient lighting
•Hospitality and retail environments
•Furniture, profiles, and decorative installations
Certifications & Reliability:
•CE, RoHS (UL model-dependent)
•Lifespan: 50,000+ hours
•General Warranty: 3–5 years
| Geometry Parameters | Selection Technical Parameters – Per metre | |||||
|---|---|---|---|---|---|---|
| Cutting Length [in mm] | LEDs | Wattage [W] | Lumens [lm] | Efficiency [lm/W] | PCB Width [in mm] | |
| 20 | 400 | 7 | 730 | 105 | 5 | Download |
| 50 | 480 | 10 | 1050 | 105 | 8 | Download |
| 50 | 480 | 14 | 1470 | 105 | 10 | Download |
| 100 | 420 | 10 | 1050 | 105 | 8 | Download |
| Free Cutting | 528 | 10 | 800 | 80 | 8 | Download |
