| Cutting Length [ in mm ] |
LEDs | Wattage [W] |
Lumens [lm] |
Efficiency [ lm / W ] |
Width PCB [ in mm ] |
|
|---|---|---|---|---|---|---|
| 25 | 160 | 7 | 1300 | 130 | 4 | Download |
| 25 | 280 | 10 | 1100 | 110 | 8 | Download |
| 25 | 320 | 19 | 3000 | 160 | 10 | Download |
| Free Cutting | 300 | 7 | 1300 | 186 | 5 | Download |
| Free Cutting | 300 | 10 | 1300 | 130 | 8 | Download |
| Free Cutting | 300 | 15 | 1950 | 130 | 10 | Download |
2216 Series
The 2216 series combines a sleek profile with robust performance, making it ideal for any project demanding clean, professional lighting.

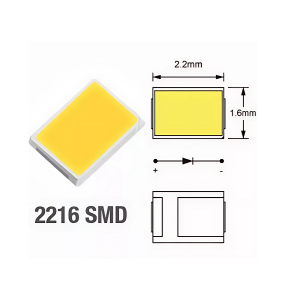

The 2216 LED strip series is designed for precision lighting with superior brightness, uniformity, and color rendering. Using compact SMD 2216 LEDs (2.2mm x 1.6mm), these strips support up to 300 LEDs per meter, delivering dot-free illumination ideal for modern commercial and residential environments.
Key Features:
- High LED Density: Up to 300 LEDs/m for seamless, continuous light output
- Excellent Color Rendering: CRI Ra>90 / Ra>95 for accurate color reproduction
- Wide CCT Range: From 2200K to 6500K, including tunable white options
- Durable PCB: Built on 2oz/3oz copper for better heat dissipation
- Power & Brightness: 10W–24W/m with output up to 2200 lm/m
- Dimmable: Supports PWM and 0–10V dimming systems
- Cuttable: Every 50mm (24V) for easy customization
Applications:

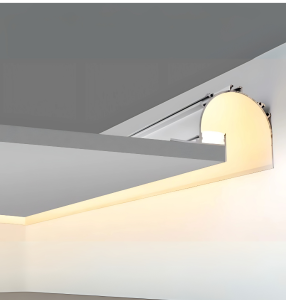

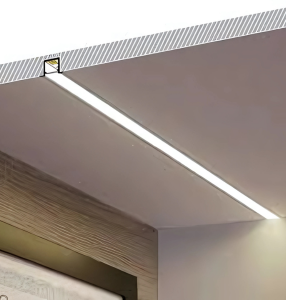

- Cove and architectural lighting

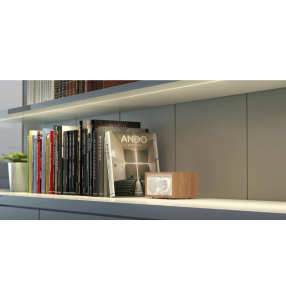

- Under-cabinet and shelf illumination

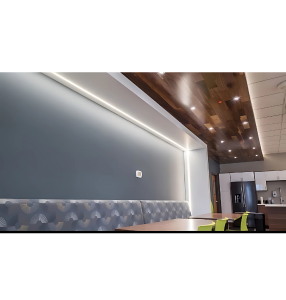

- Retail displays and showcases
- Task lighting in kitchens and offices
- Ambient lighting in hospitality settings
- Linear integration into profiles and pendants
Certifications & Reliability:
- CE, RoHS, UL (model-dependent)
- Lifespan: 50,000+ hours
- General Warranty: 3–5 years
The 2216 series combines a sleek profile with robust performance, making it ideal for any project demanding clean, professional lighting.
The 2216 LED strip series is designed for precision lighting with superior brightness, uniformity, and color rendering. Using compact SMD 2216 LEDs (2.2mm x 1.6mm), these strips support up to 300 LEDs per meter, delivering dot-free illumination ideal for modern commercial and residential environments.
Key Features:
- High LED Density: Up to 300 LEDs/m for seamless, continuous light output
- Excellent Color Rendering: CRI Ra>90 / Ra>95 for accurate color reproduction
- Wide CCT Range: From 2200K to 6500K, including tunable white options
- Durable PCB: Built on 2oz/3oz copper for better heat dissipation
- Power & Brightness: 10W–24W/m with output up to 2200 lm/m
- Dimmable: Supports PWM and 0–10V dimming systems
- Cuttable: Every 50mm (24V) for easy customization
Applications:
- Cove and architectural lighting
- Under-cabinet and shelf illumination
- Retail displays and showcases
- Task lighting in kitchens and offices
- Ambient lighting in hospitality settings
- Linear integration into profiles and pendants
Certifications & Reliability:
- CE, RoHS, UL (model-dependent)
- Lifespan: 50,000+ hours
- General Warranty: 3–5 years
